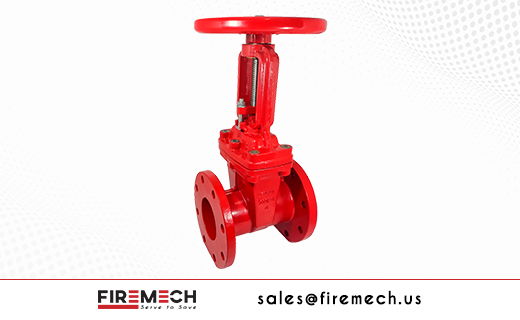

GATE VALVE
Features
- Material: Ductile Iron ASTM A536, 65-45-12 Body
- Complies with AWWA C515 Standard
- Working pressure: 200PSI / 250PSI / 300PSI
- Connection Ends : ANSI B16.1 Class125/150 or EN1092-2 PN16(Other flange types available upon request)
- Fusion Bonded Epoxy Coating Fusion bonded epoxy coating in accordance with ANSI/AWWA C550.
- Water Temparature Max 80 degree
Description
Firemech Fire Alarm cables are used for a variety of life safety devices, and are required to comply with many codes and standards. PVC insulated solid bare copper conductors, twisted with an overall red PVC jacket with rip cord. Shielded version has an aluminum tape and drain wire.
Specification
- Model:
- conductor:
- insulation thickness:
- Min insulation thickness:
- inner wire:
- wire numbers:
- drain:
- wrapping:
- jacket:
- OD:
- Jacket thickness:
- Min jacket thickness:
- Rated temperature:
- Voltage resistance:
- Voltage resistance:
- Application:
- UL FPLR 2× 1.5MM²
- 1.5mm² solid bare copper
- 0.45 mm
- 0.38 mm
- brown,blue(flame retardant PVC)
- 2 core
- 0.8mm tinned copper
- Al-foil
- red (flame retardant PVC)
- 6.0± 0.3 mm
- 0.74 mm
- 0.65 mm
- 105o
- AC: 2500V/2S, no breakdown
- VW-1
- fire alarm systems
- UL FPLR 2× 2.5MM²
- 2.5mm² solid bare copper
- 0.53 mm
- 0.46 mm
- brown,blue(flame retardant PVC)
- 2 core
- 0.8mm tinned copper
- Al-foil
- red(flame retardant PVC)
- 7.1± 0.3mm
- 0.74mm
- 0.65mm
- 105
- AC： 2500V/2S： no breakdown
- VW-1
- fire alarm systems
Application
Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits
Ordering Information
Mention FIREMECH Cable Model
1. FMC 2 x 1.5 rm ( FPL/FPLR)
2. FMC 2 x 2.5 rm ( FPL/FPLR)
1. FMC 2 x 1.5 rm ( FPL/FPLR)
2. FMC 2 x 2.5 rm ( FPL/FPLR)
