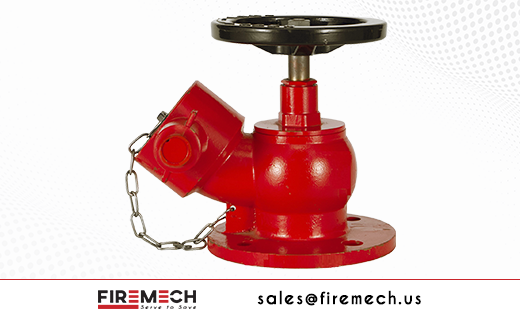

OBLIQUE LANDING VALVE
Features
- Compact design with excellent flow characteristics
- Precise machining for metal to metal leak proof seating
- Straight-through design for ease of use
- Corrosion resistant & Maintenance free
- Complete with plastic blank cap and chain
- Disc facing rubber is of replaceable type
- The hand wheel is BLACK painted and body to Fire RED
Description
Oblique Landing Valve is a type of globe pattern hydrant valve. These oblique type landing valves are available with flanged inlet or screwed inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard. The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bars. The internal casting finishes of every valve is of high quality ensuring a low flow restriction that meets the standard’s water flow test requirement.
Specification
- Valve Type Oblique, Flanged Inlet or BSP Screw
- Pressure Rating Low Pressure Valve
- Working Pressure 15 Bar Maximum
- Test Pressure Valve Seat Test at 16.5 Bar
- Body Test at 22.5 Bar
- Water Flow Rate 8.5 L/S @ 4 Bar Outlet Pressure
- Applicable Standards BS 5041 - 1 :1987
- Body Copper Alloy to BS EN 1982
- Hand Wheel Cast Iron to BSEN 1561
- Inlet Size Ø65mm
- Screwed Inlet 2 1/2” BSP Thread
- Flange Drilling BS 4504 Part 2:1974 Table:16/21
- Outlet Size Female Instantaneous to BS 336: 2010
Application
Oblique type landing valves are suitable for both on-shore and off-shore fire protection applications and suitable for installation on wet risers for firefighting. These valves are generally used with permanently charged water from a pressurized supply with water and accordingly mounted in fire hydrant systems at Internal or External places.
Ordering Information
1. Model Number, Size
2. Valve Type
3.Pressure Rating
4.Material Specification
5.Approvals
