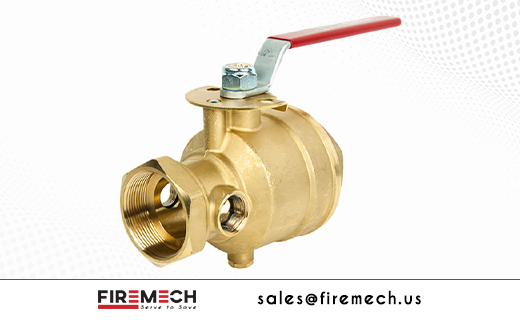

TEST & DRAIN VALVE
Description
Test & Drain Valve features single handle ball valve inspector’s test which eliminated the time and space consuming traditional loop assembly and provides both the test function and the express drain function for a wet fire sprinkler system. It also has large & integral sight glass allowing for maximum visibility when operated. The compact and integrated form allow for installation in both horizontal and vertical orientations in a minimal occupation of space. Heavy duty bronze construction extended service life of EMACO Test & Drain Valve which includes a tamper resistant test orifices and integral tamper resistant sight glasses, and has 300 PSI rating.
Specification
- Model:
- conductor:
- insulation thickness:
- Min insulation thickness:
- inner wire:
- wire numbers:
- drain:
- wrapping:
- jacket:
- OD:
- Jacket thickness:
- Min jacket thickness:
- Rated temperature:
- Voltage resistance:
- Voltage resistance:
- Application:
- UL FPLR 2× 1.5MM²
- 1.5mm² solid bare copper
- 0.45 mm
- 0.38 mm
- brown,blue(flame retardant PVC)
- 2 core
- 0.8mm tinned copper
- Al-foil
- red (flame retardant PVC)
- 6.0± 0.3 mm
- 0.74 mm
- 0.65 mm
- 105o
- AC: 2500V/2S, no breakdown
- VW-1
- fire alarm systems
- UL FPLR 2× 2.5MM²
- 2.5mm² solid bare copper
- 0.53 mm
- 0.46 mm
- brown,blue(flame retardant PVC)
- 2 core
- 0.8mm tinned copper
- Al-foil
- red(flame retardant PVC)
- 7.1± 0.3mm
- 0.74mm
- 0.65mm
- 105
- AC： 2500V/2S： no breakdown
- VW-1
- fire alarm systems
